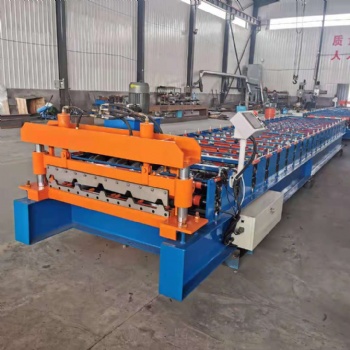

The trapezoid roof sheet making machine is used to make trapezoidal profile panels. A trapezoidal roof profile has a ribbed trapezoidal-shape pattern across the panel.
Trapezoidal rib roofs are popular with producers because the shape makes them very material-efficient. This makes for a very cost-effective profile. The shadows of the trapezoidal shapes offer clean lines whether installed vertically diagonally,or horizontally.They also possess good structural characteristics and can carry design loads well.
The whole production line include: Decoiler, roll former, hydraulic cutting system, control system and receive table.
Decoiler：
Function:To support the coil for production
Types:Manual and automatic for option
Capacity:Normal 5 tons,other weight also can customized

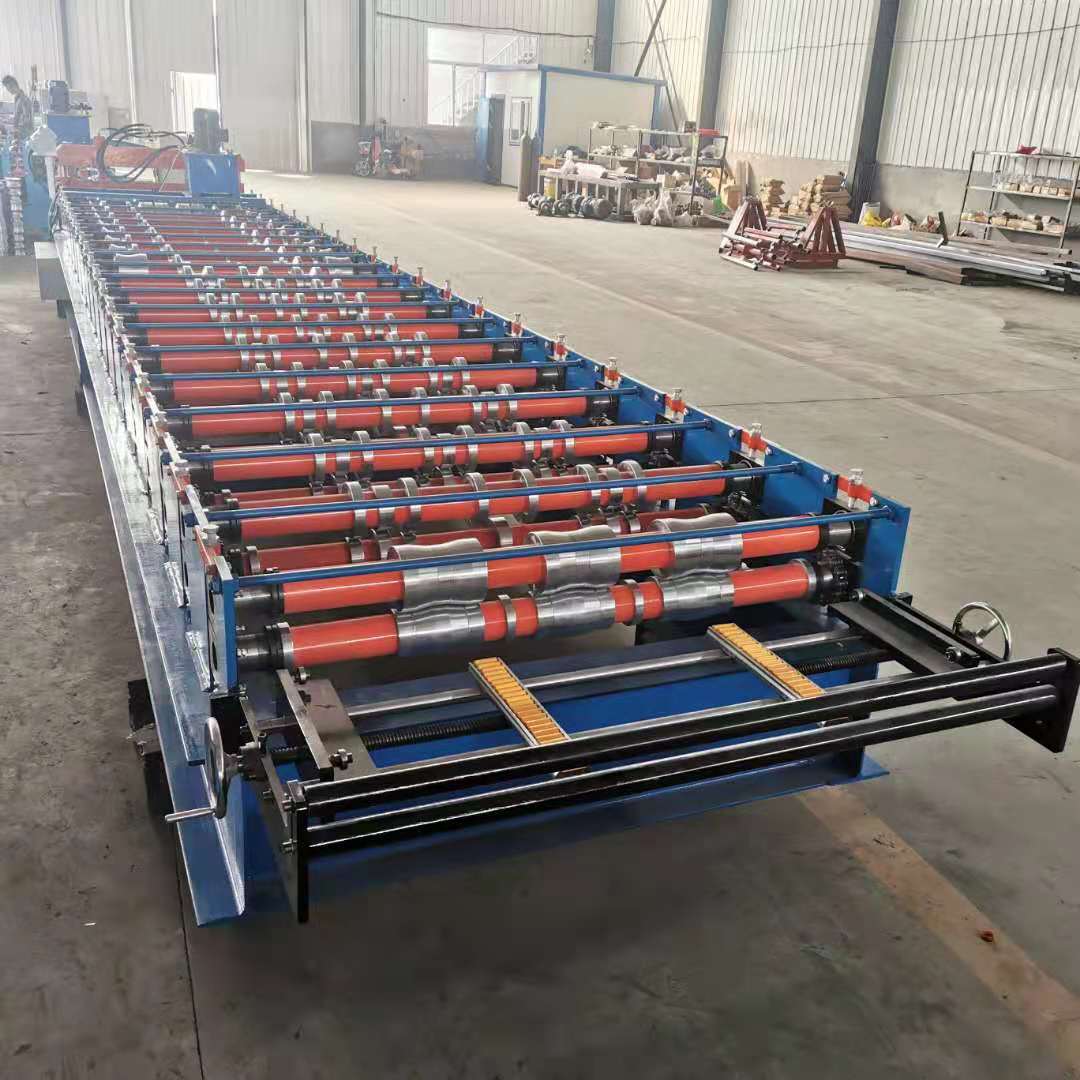

Roll former：
The roll former part include the machine frame,feeder,shaft and rollers,chain transmission,motor,cutter etc,it is used to produce the flat sheet to trapezoidal sheet.
The feeders:our feeders use the stainless rollers to avoid the material from scratching.

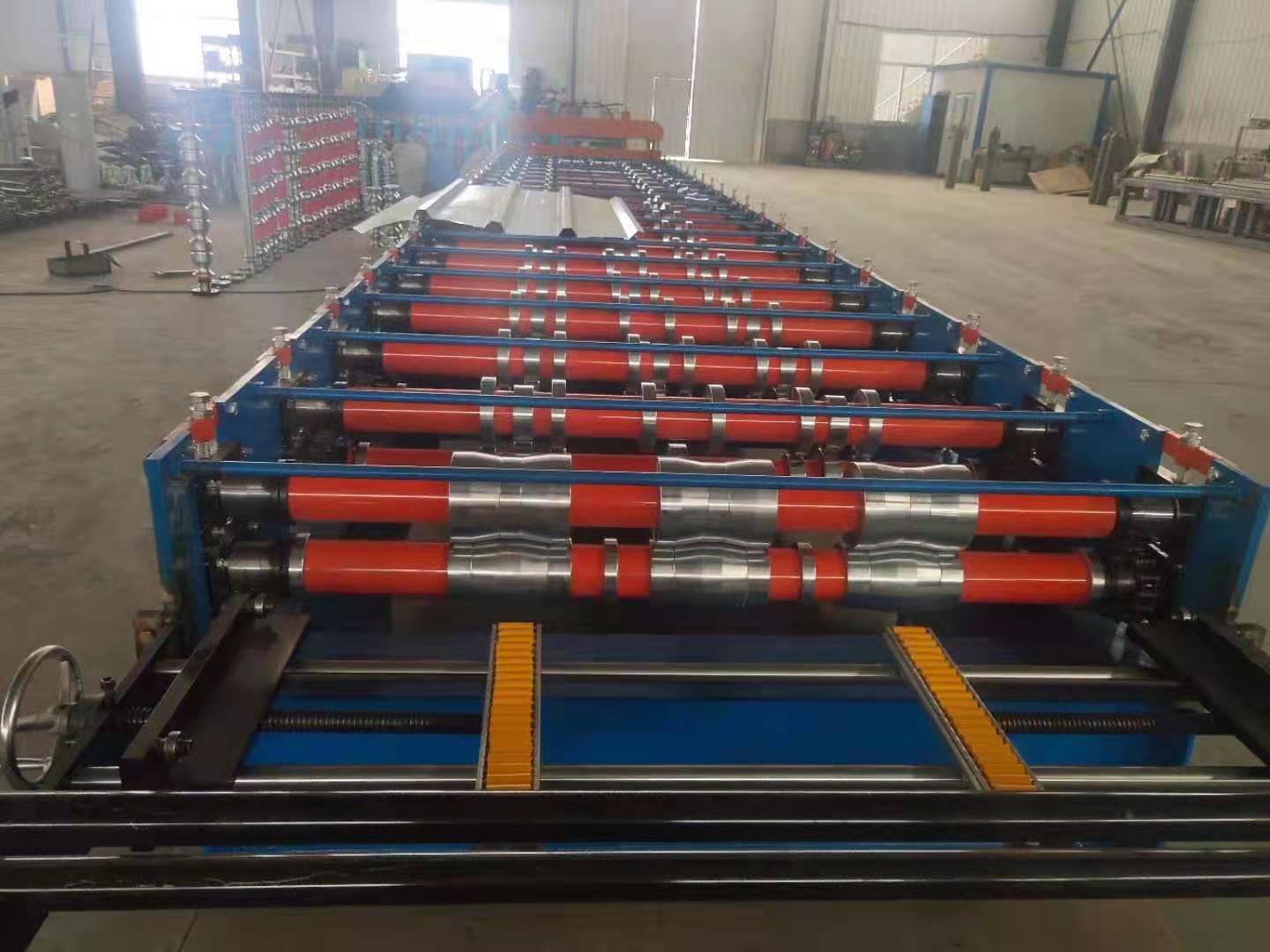

Shaft and Rollers:All of our shaft are solid,and our rollers are hard chromed to improve the hardness of the roller so that it can use longer time.

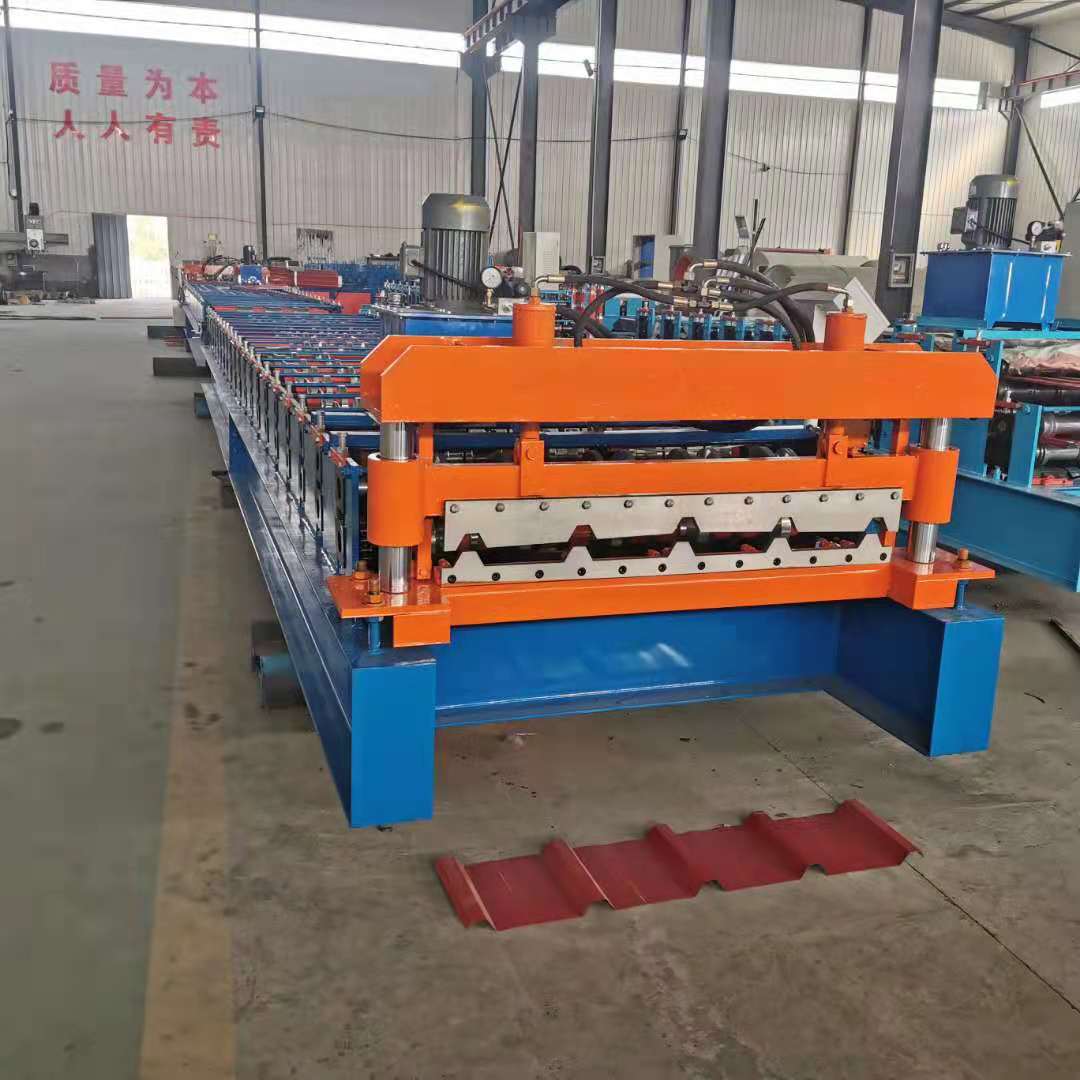

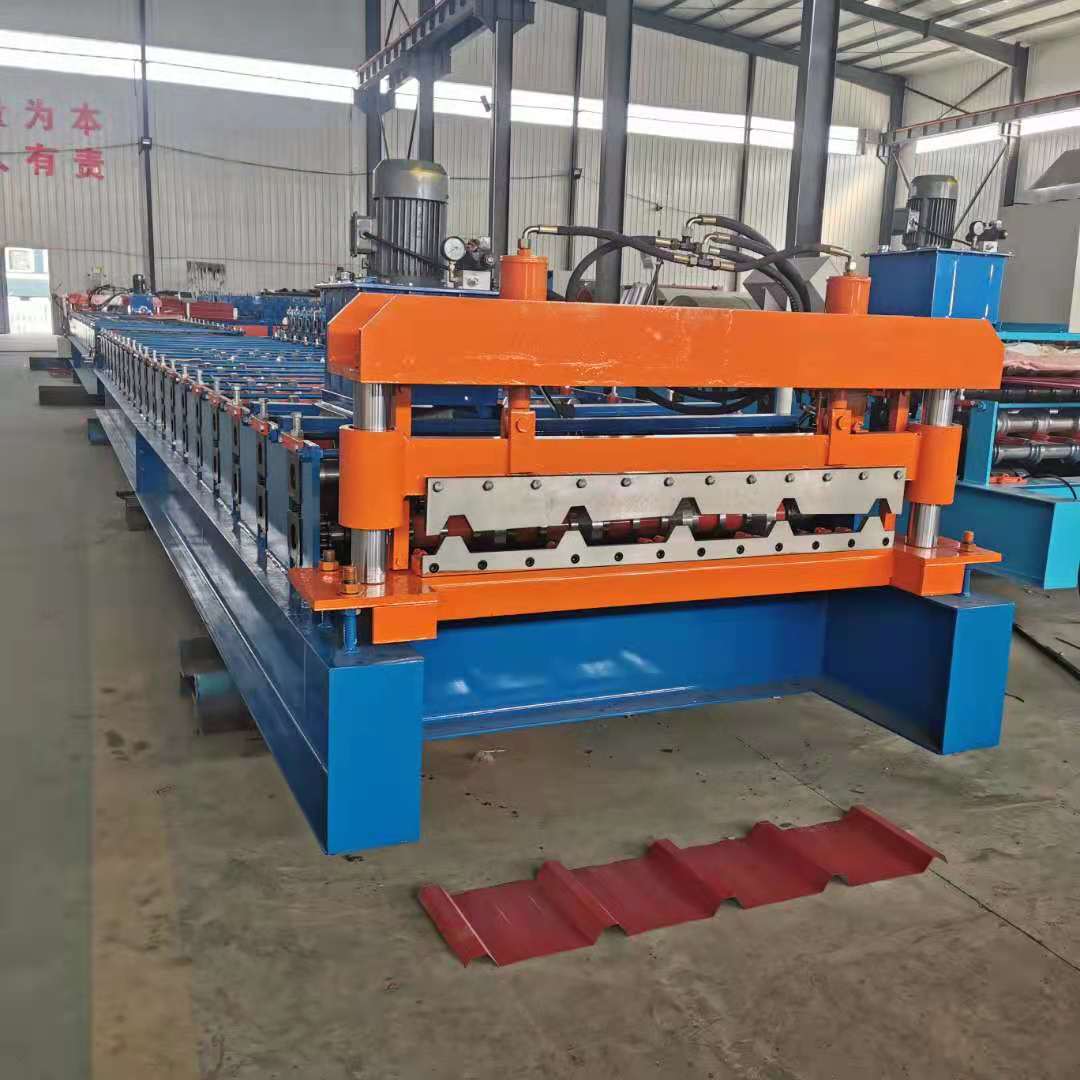

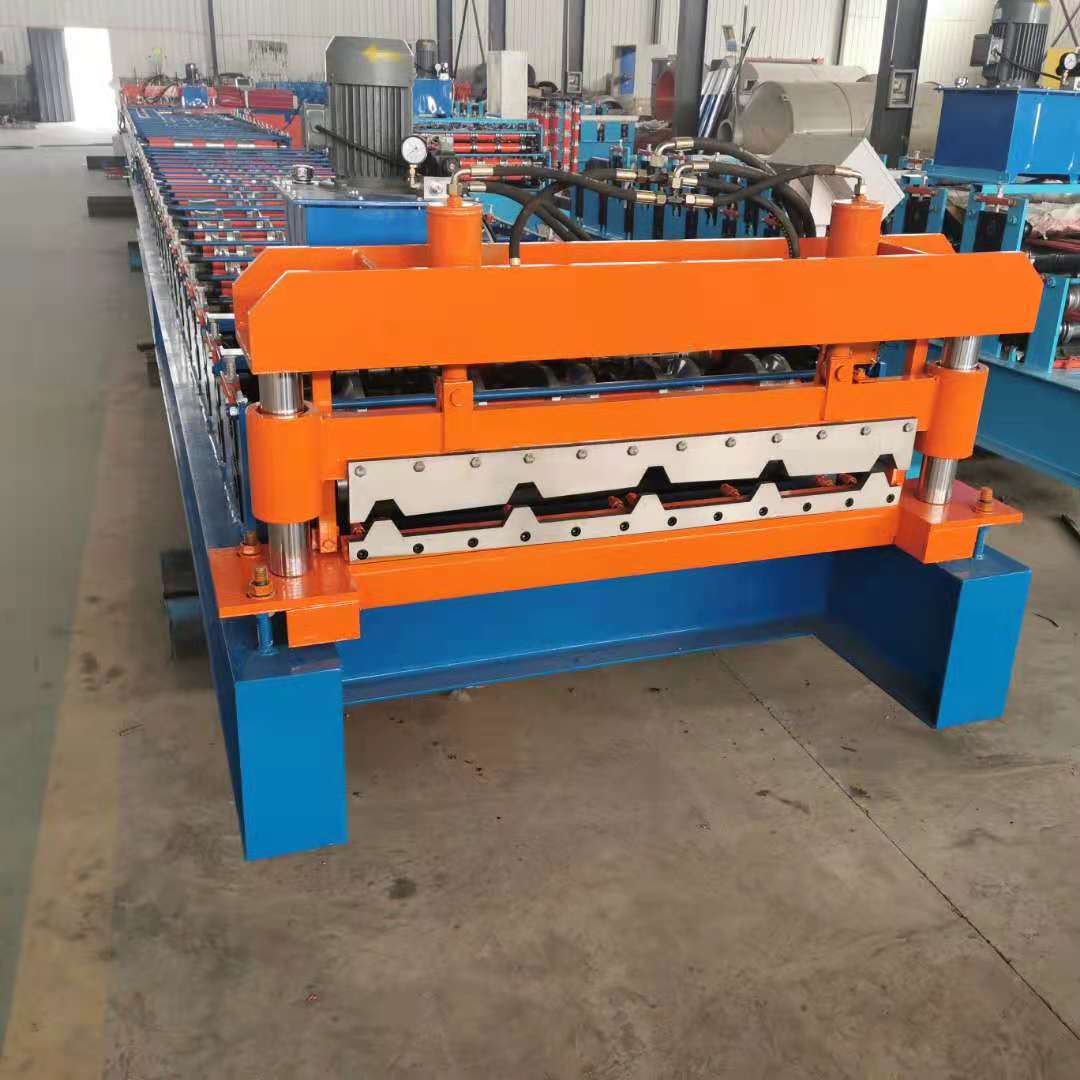

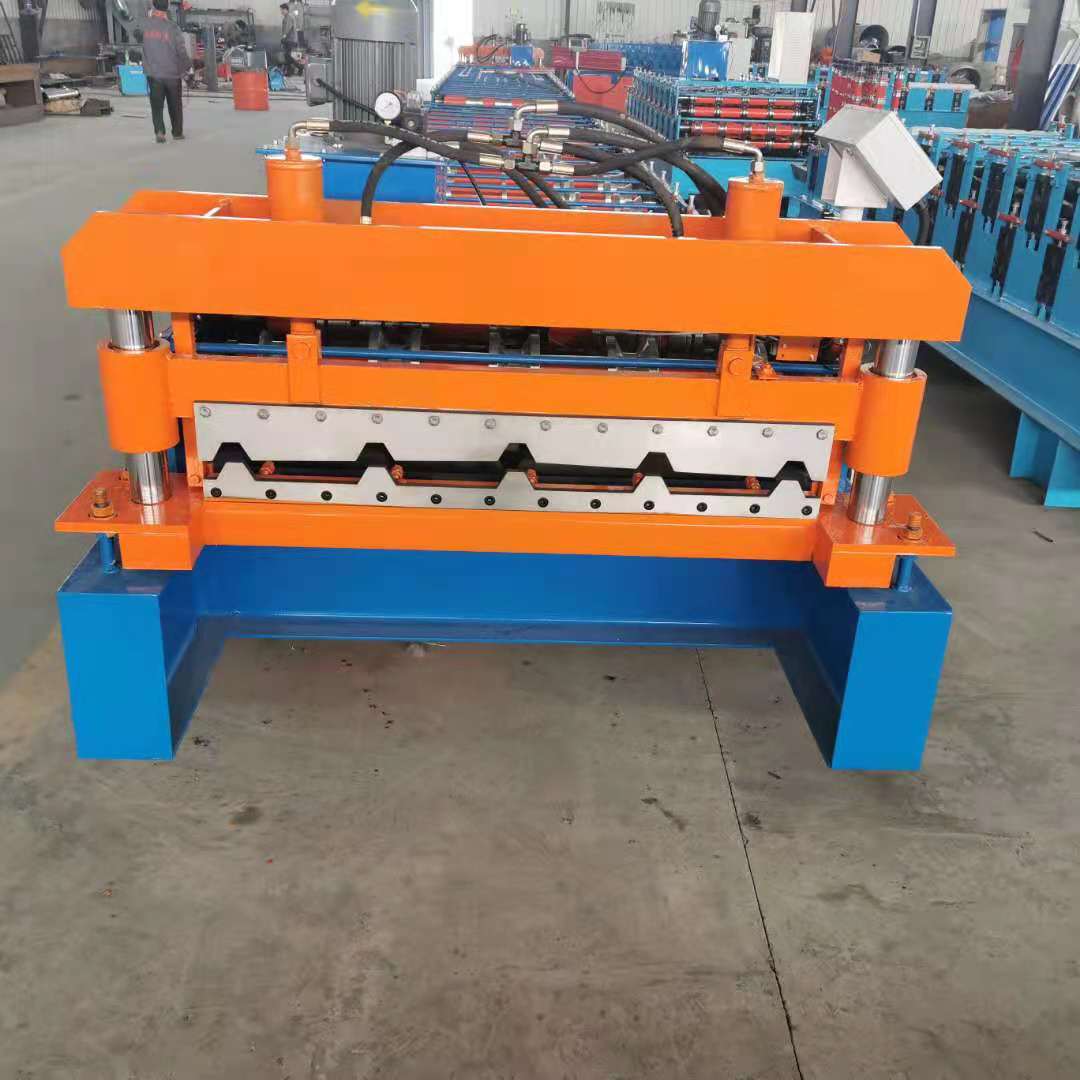

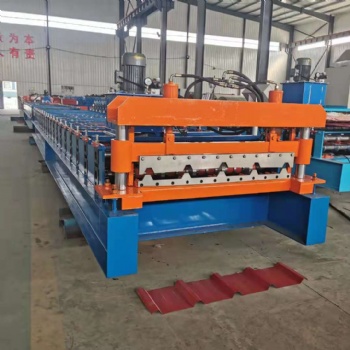

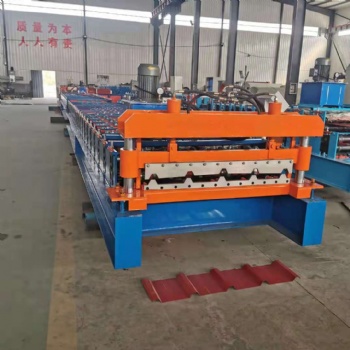

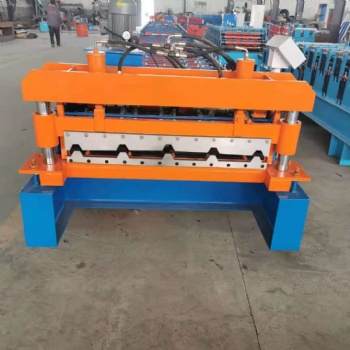

Cutting device:Stronger guide post cutting device and the blade holder which will make the cutter working more stable and long life-time.

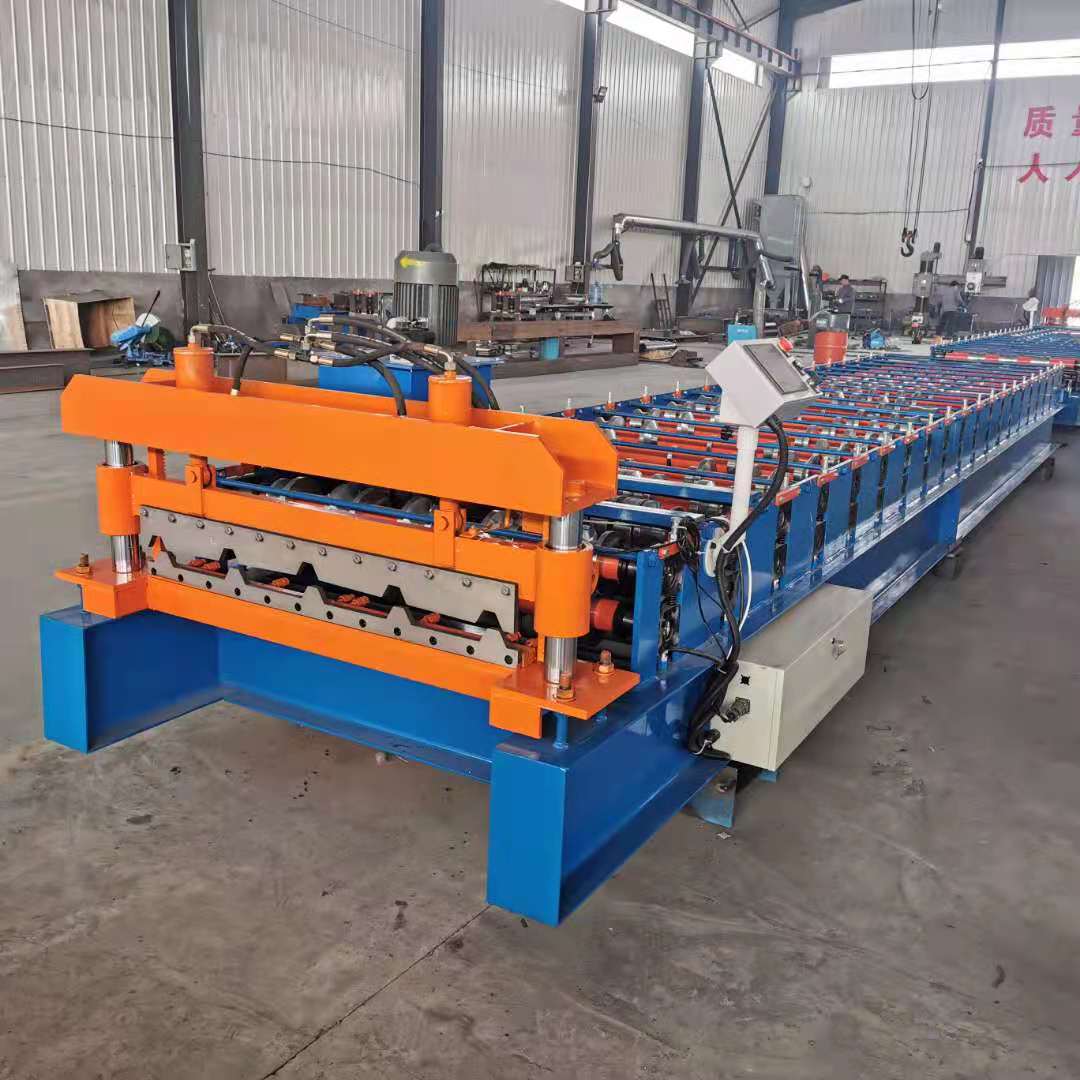

Control system:
Our machine adopt famous brand in the control system,such as Siemens PLC and touch screen,Schneider low voltage apparatus and omron encoder,these brand electric parts have after-sale service in the whole world which is more convenient for customer
Hydraulic system:
Our hydraulic system is equipped with the fan cooling system,it can cool down the oil during long time working or at hot weather
Packing and shipping:
Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
TG RFM has been in this industry for more than two decades, so we have a lot of experience in the machines. We support customization as our customer’s request, welcome to contact us!
Hebei Tonggong RFM is located in Cangzhou City, Hebei Province, China. Founded in 2010, our company mainly produces roofing sheet roll forming machine, CZ purlin roll forming machine, light steel keel roll forming machine, metal embossing machine, etc.
Tags: roll forming machine , roofing machine , CZ purlin machine , keel roll forming machine , roller shutter door forming machine , color steel roll forming machine
