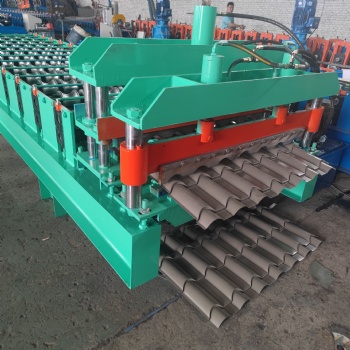

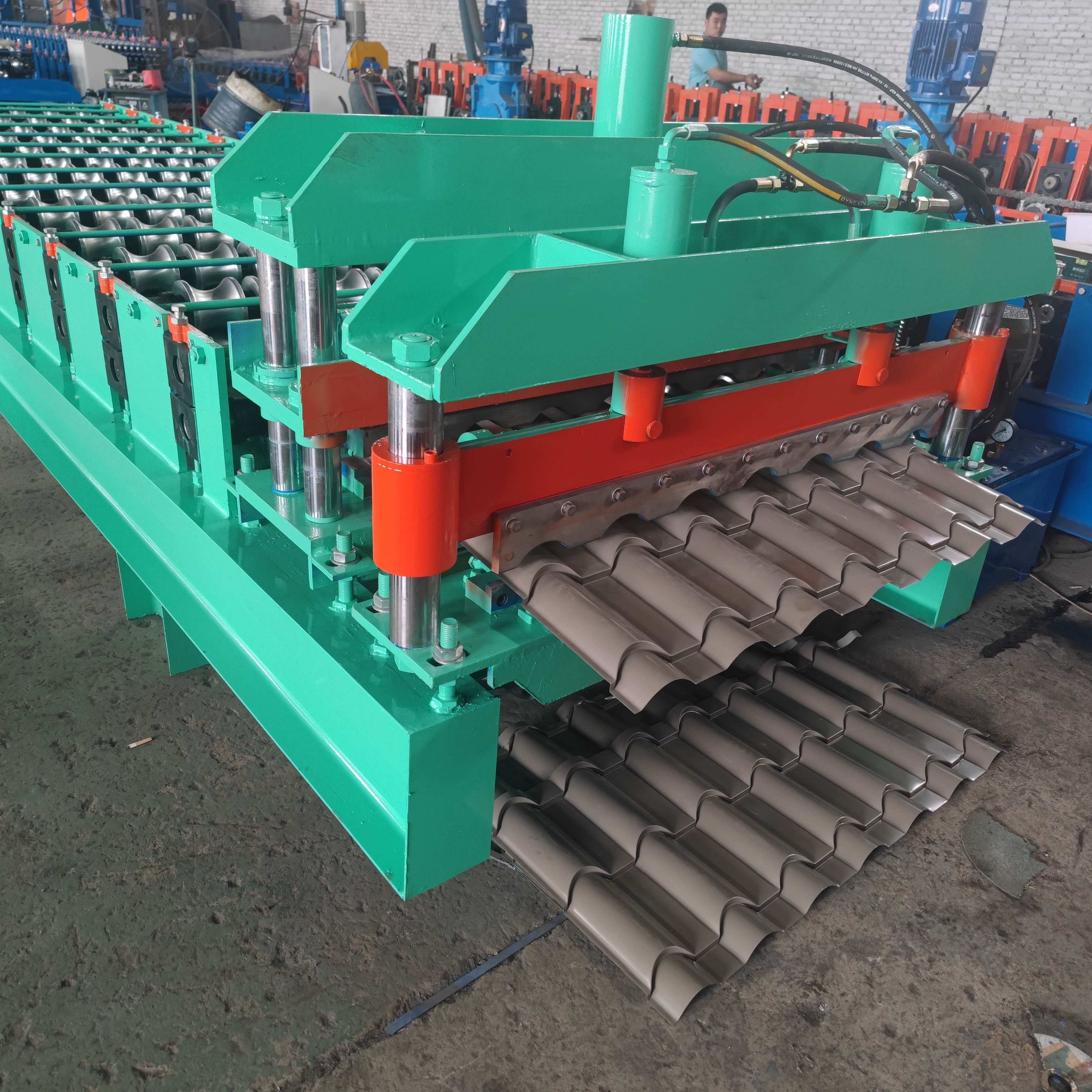

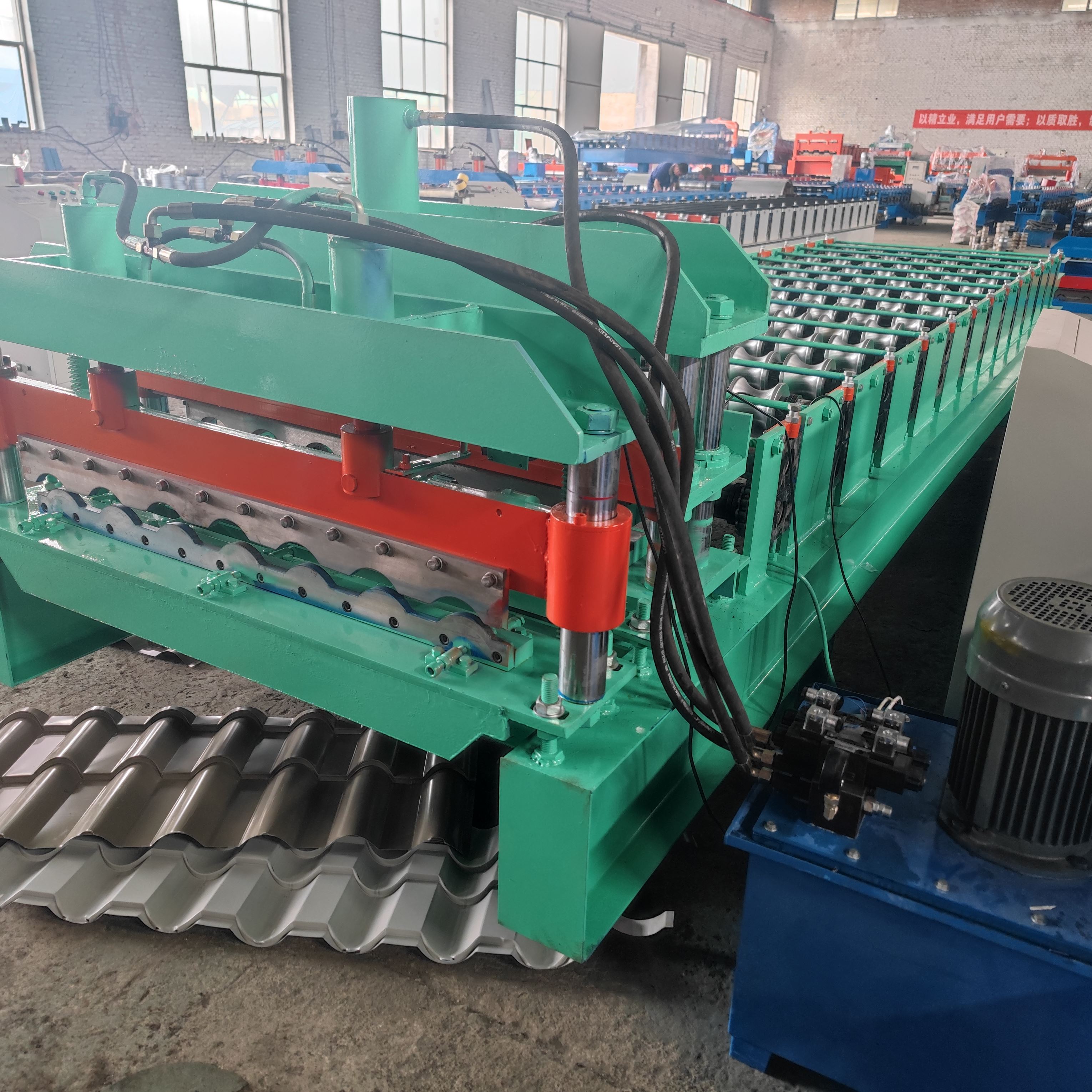

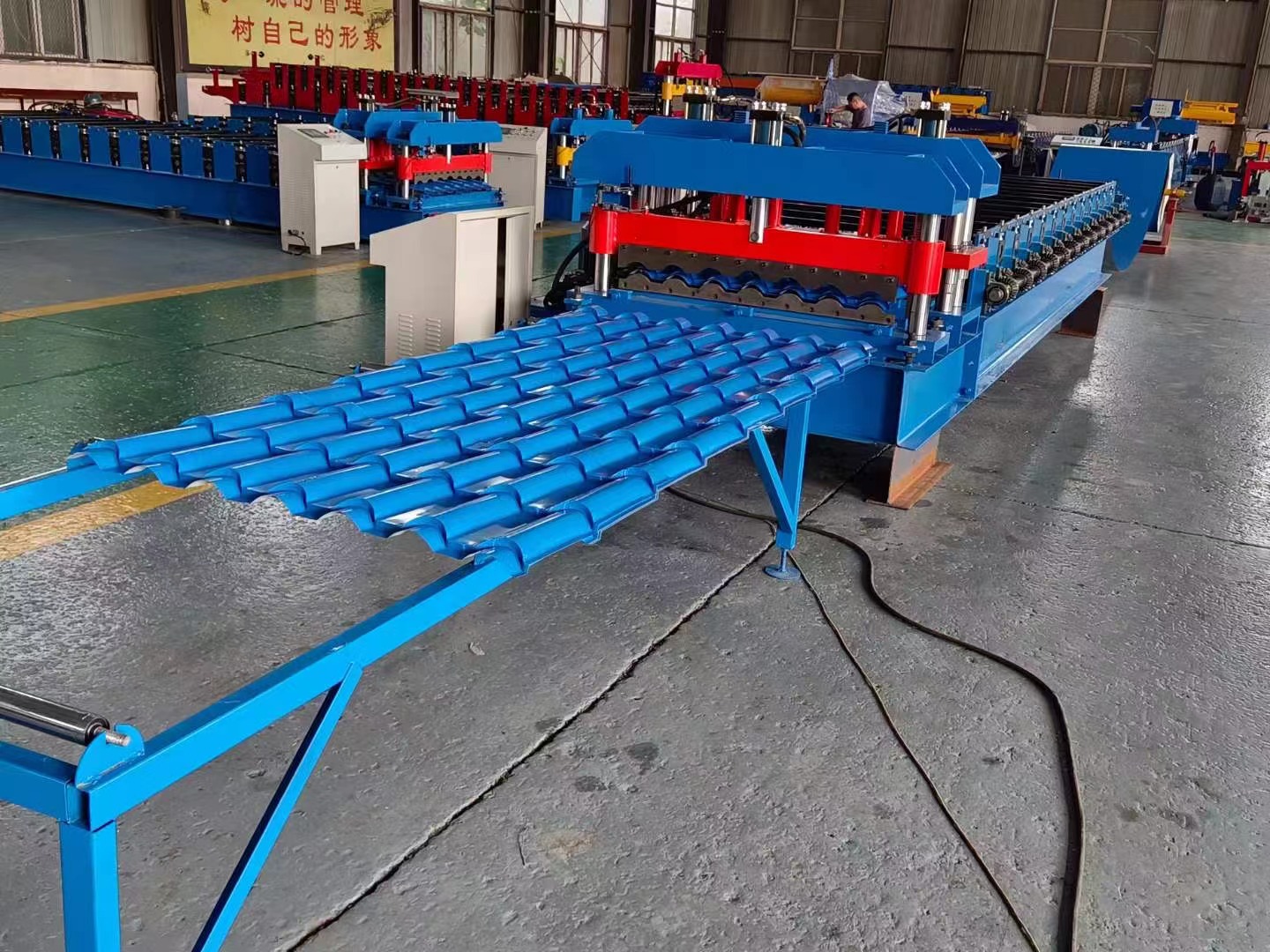

Glazed Tile Roofing Sheet Making Machine

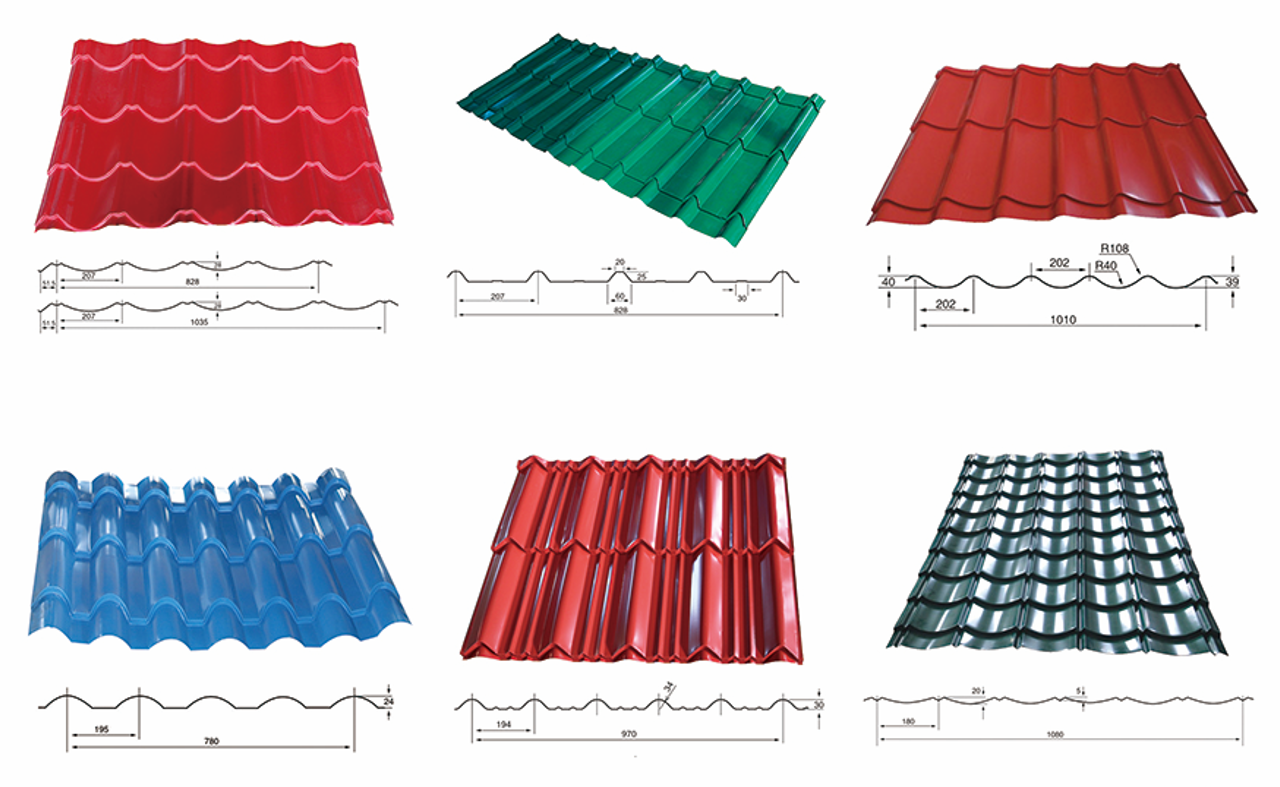

Profile Drawing of glazed tile：

Decoiler：

Function:To support the coil for production

Types:Manual and automatic for option

Capacity:Normal 5 tons,other weight also can customized

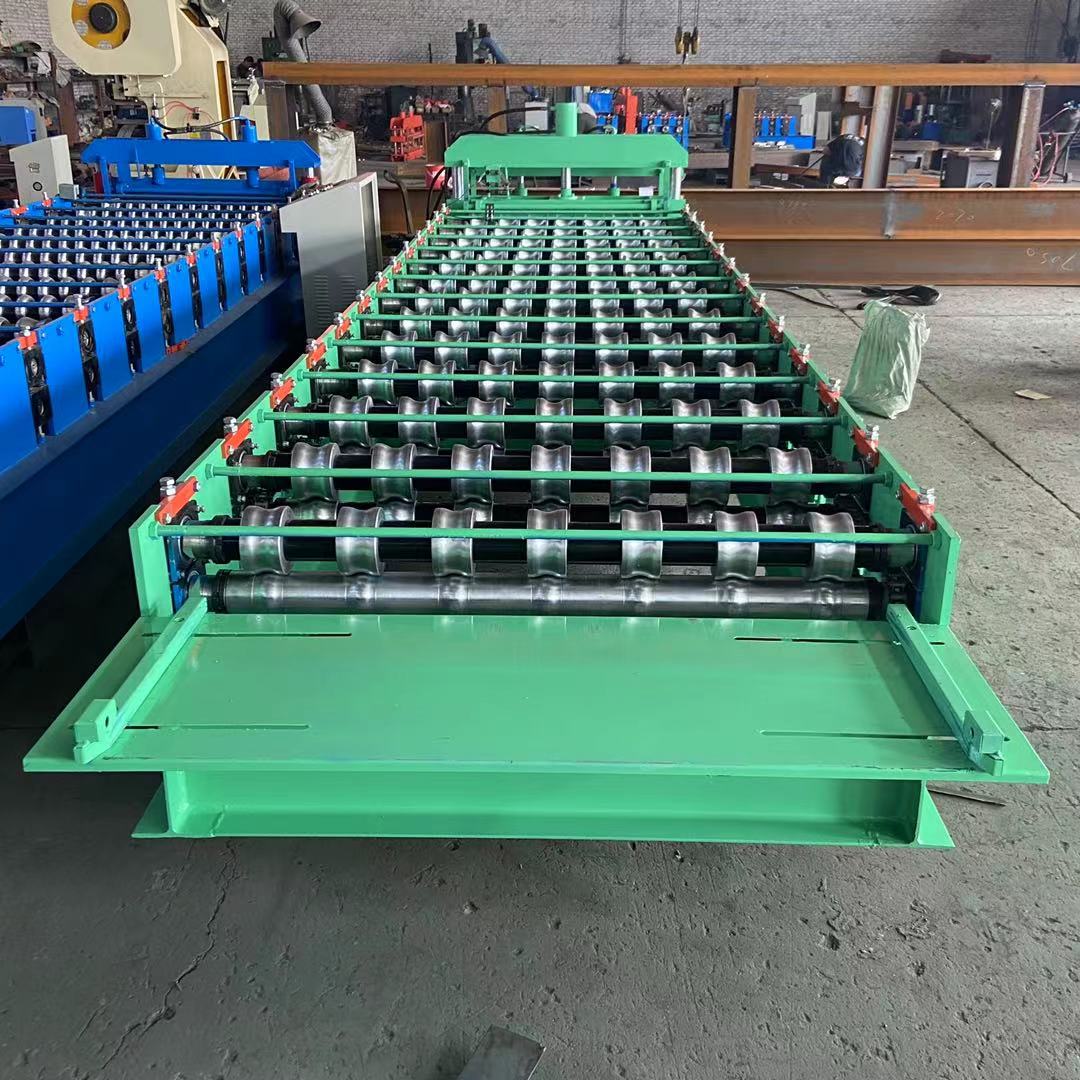

Roll former：

The roll former part include the machine frame,feeder,shaft and rollers,chain transmission,motor,cutter etc,it is used to produce the flat sheet to trapezoidal sheet.

The feeders:our feeders use the stainless rollers to avoid the material from scratching.

Shaft and Rollers:All of our shaft are solid,and our rollers are hard chromed to improve the hardness of the roller so that it can use longer time.

Cutting device:Stronger guide post cutting device and the blade holder which will make the cutter working more stable and long life-time.

Control system:

Our machine adopt famous brand in the control system,such as Siemens PLC and touch screen,Schneider low voltage apparatus and omron encoder,these brand electric parts have after-sale service in the whole world which is more convenient for customer

Hydraulic system:

Our hydraulic system is equipped with the fan cooling system,it can cool down the oil during long time working or at hot weather

Packing and shipping:
Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

TG RFM has been in this industry for more than two decades, so we have a lot of experience in the machines. We support customization as our customer’s request, welcome to contact us!
