Coil decoiler:
1. Loading capacity: 3T
2. Uncoiling width: 300mm
3. Inner diameter: 450-550mm
4. Has power, it can work automatically
5. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter.

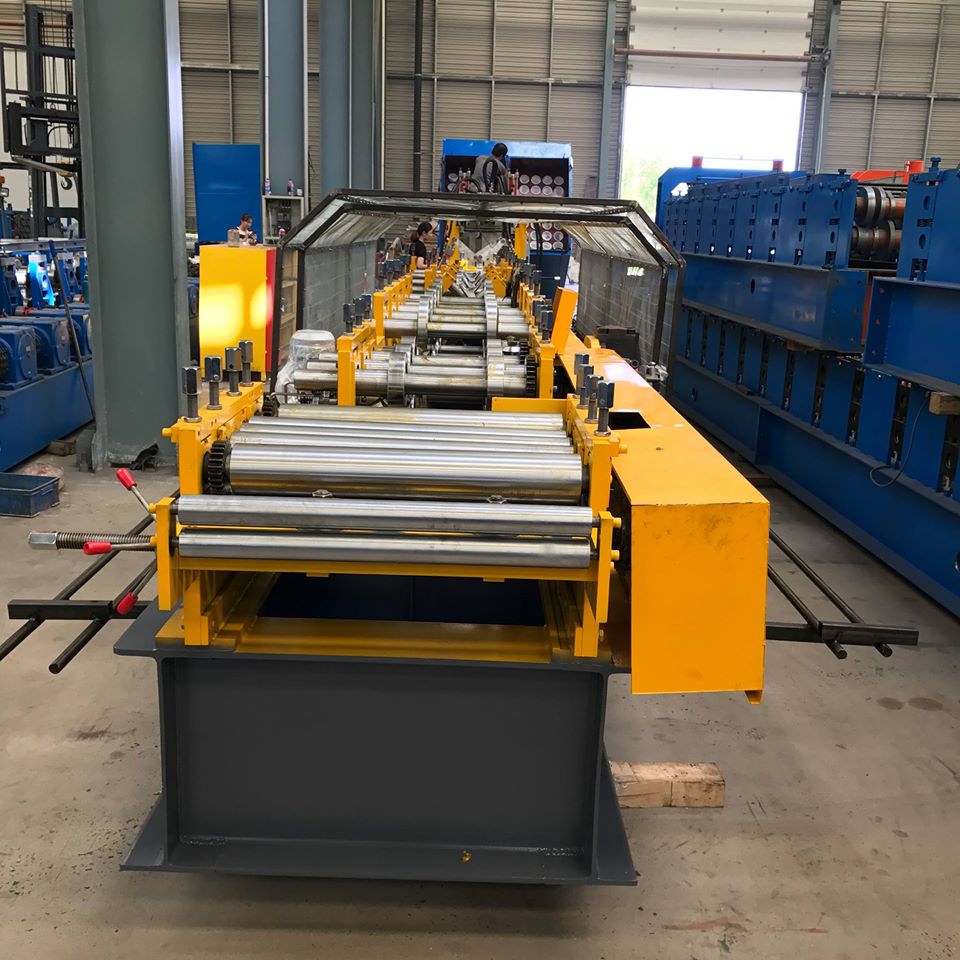

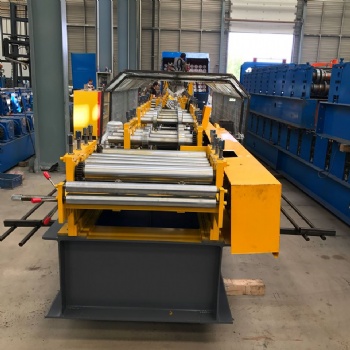

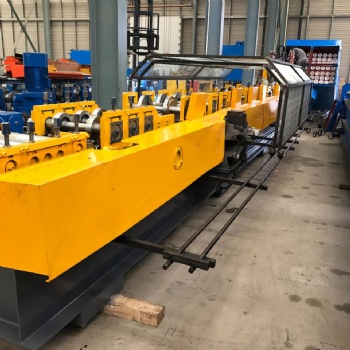

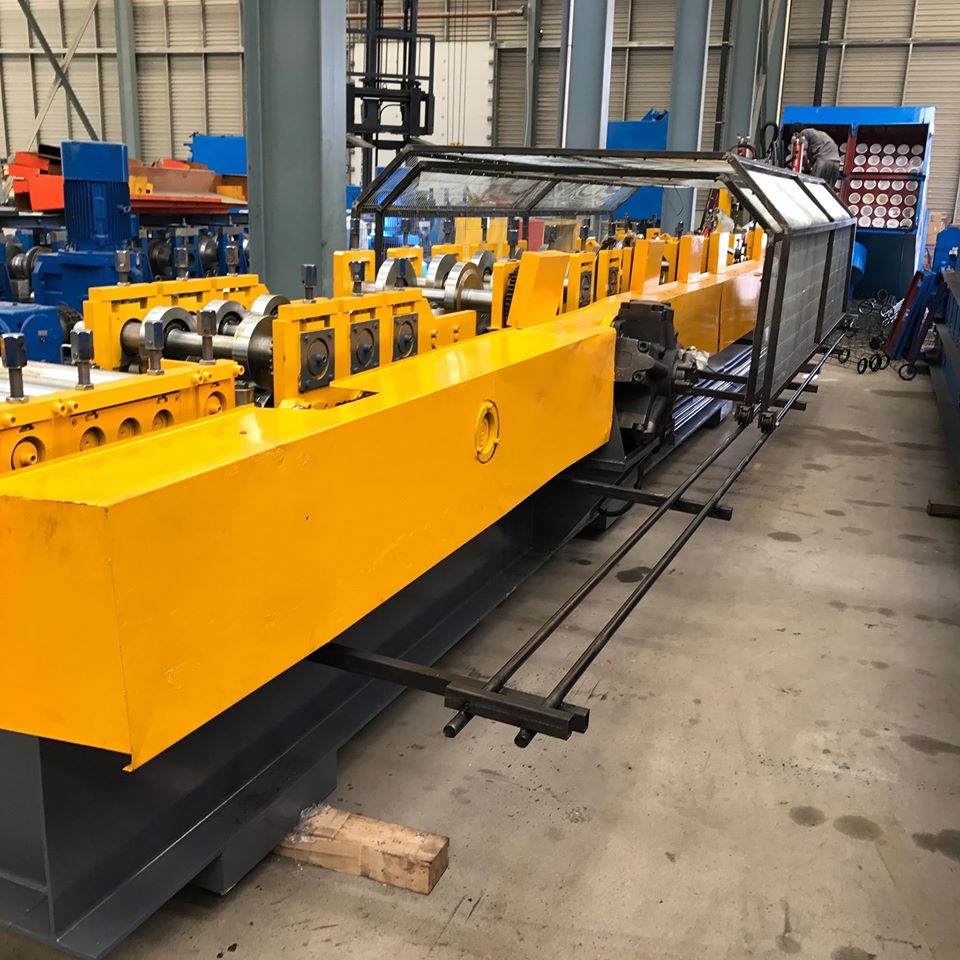

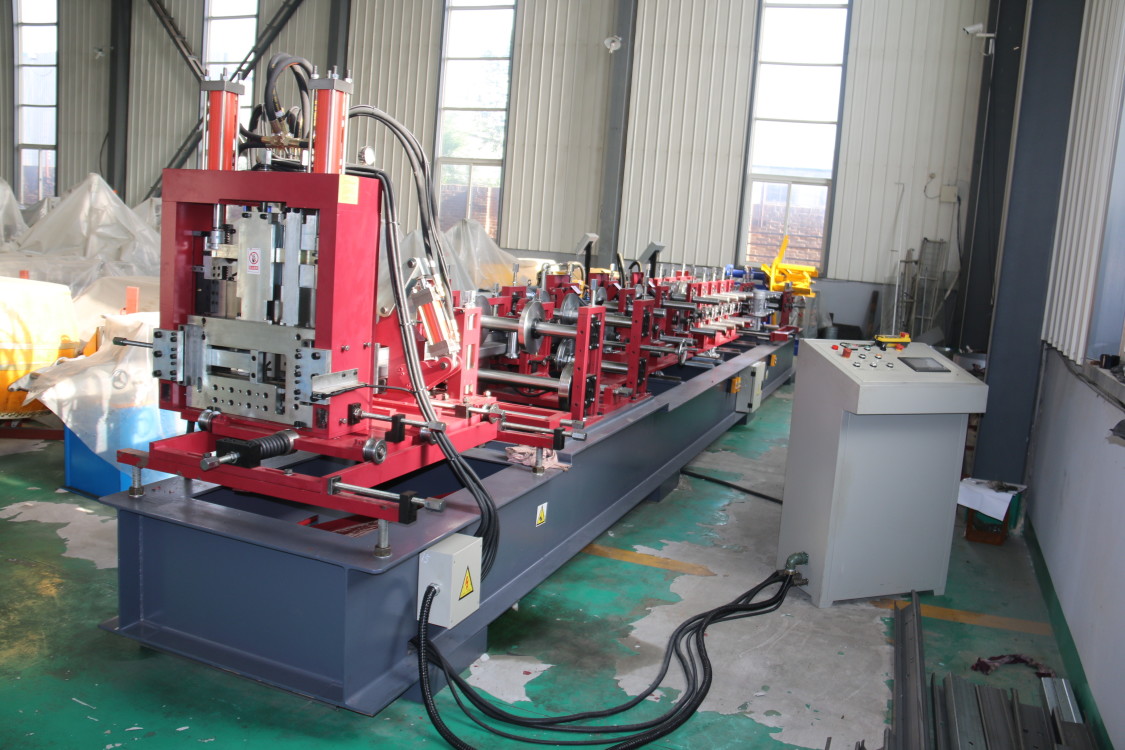

Roll forming machine：
| Product | C&Z purlin Quick Interchangeable Roll Forming Machine |

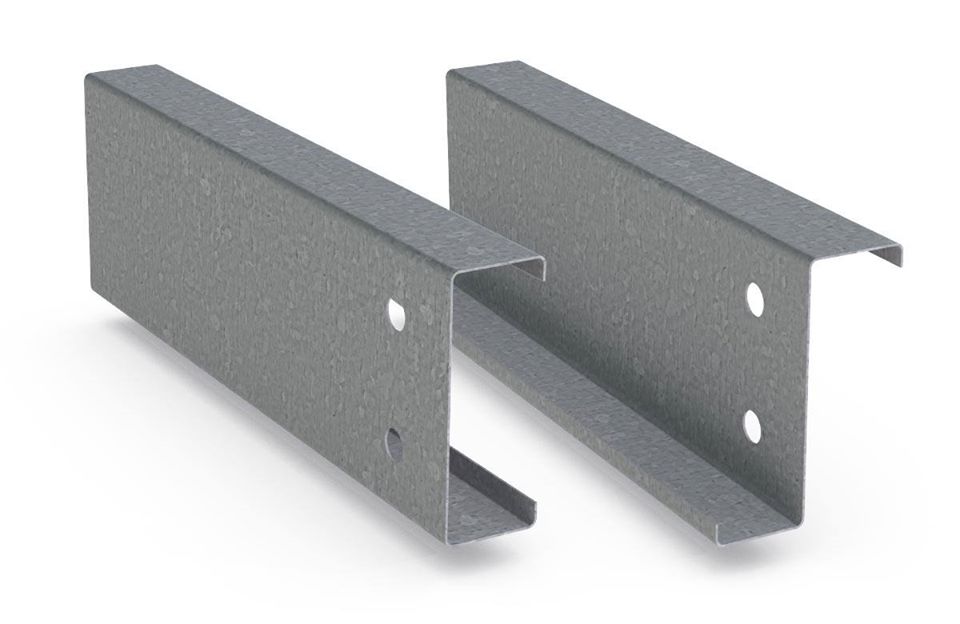

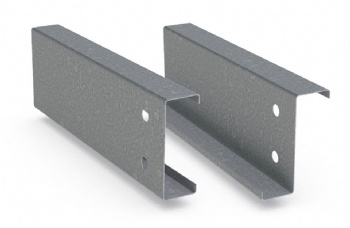

| Model | C Channel Profile / Z Shape Profile (Customizable ) |
| Base Material | Galvanized Steel Hot And Cold Rolled Steel |
| Thickness | 1.5-3.0mm (Customizable) |
| Effective Width | According To Profile Size |
| Roller Station | About 16 Stations |
| Roller Material | Bearing Steel / Cr12Mov |
| Roller Driven Type | By Chain/ Gearbox |
| Color | According To Customer Requirements / Customizable |
| Brand | SUNWAY |
| Control System | Worldwide Famous Brand PLC (Panasonic, Siemens, Delta, etc.) |
| Power | 15KW-18KW |
| Frame | 350 H Steel / 400 H Steel |
| Cutting Drive | Hydraulic Drive |
| Cutting & Hydraulic Type | Type:Post Universal Cutter |

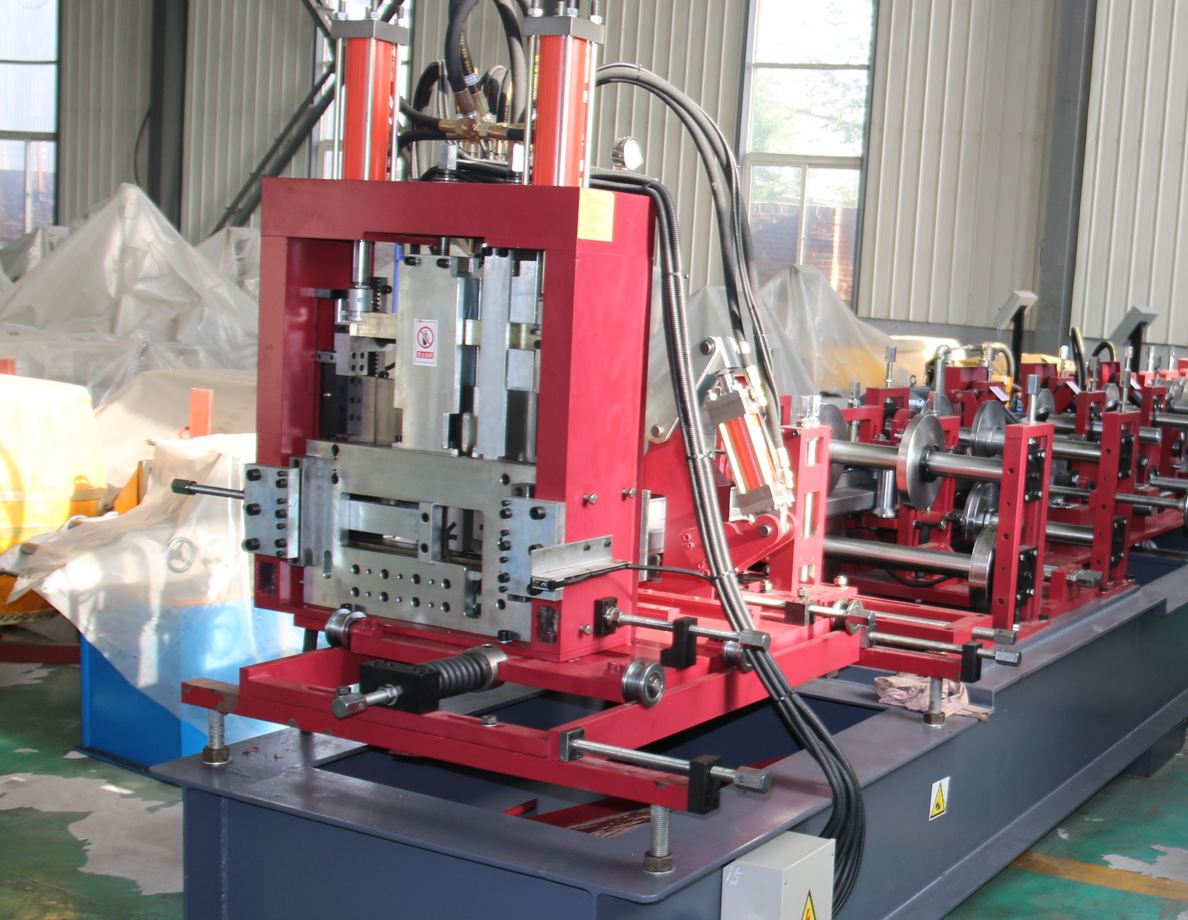

Shearing device：
1. Material of blades: Gcr12 quenched
2. Cutting type: Universal post cutter. no need change cutter blades for different sizes.
Hydraulic Station：
1. Hydraulic motor Power: 5.5kw
2. Hydraulic oil: 46#

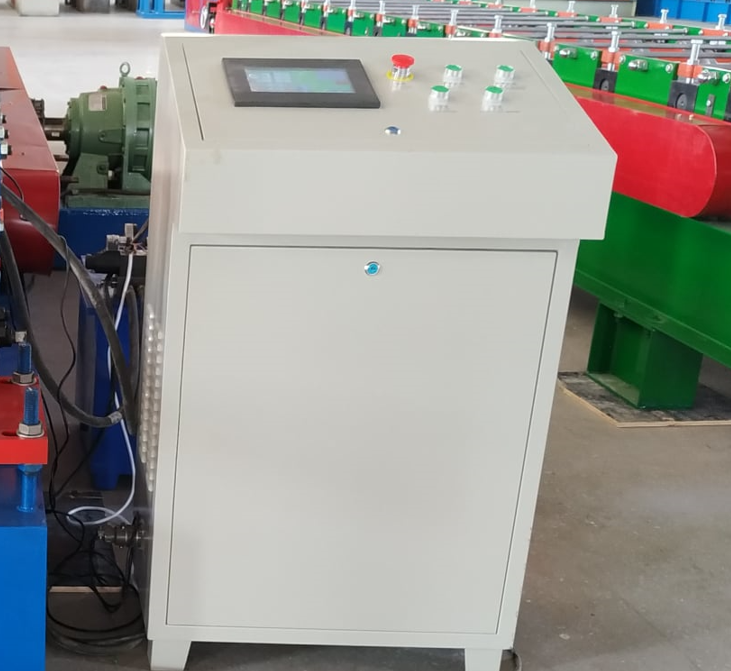

Control System：
Delta PLC control
Delta touch screen
Program language: English/Chinese(or as required)
Packing and shipping：
Hebei Tonggong RFM is located in Cangzhou City, Hebei Province, China. Founded in 2010, our company mainly produces roofing sheet roll forming machine, CZ purlin roll forming machine, light steel keel roll forming machine, metal embossing machine, etc.
Tags: roll forming machine , roofing machine , CZ purlin machine , keel roll forming machine , roller shutter door forming machine , color steel roll forming machine
