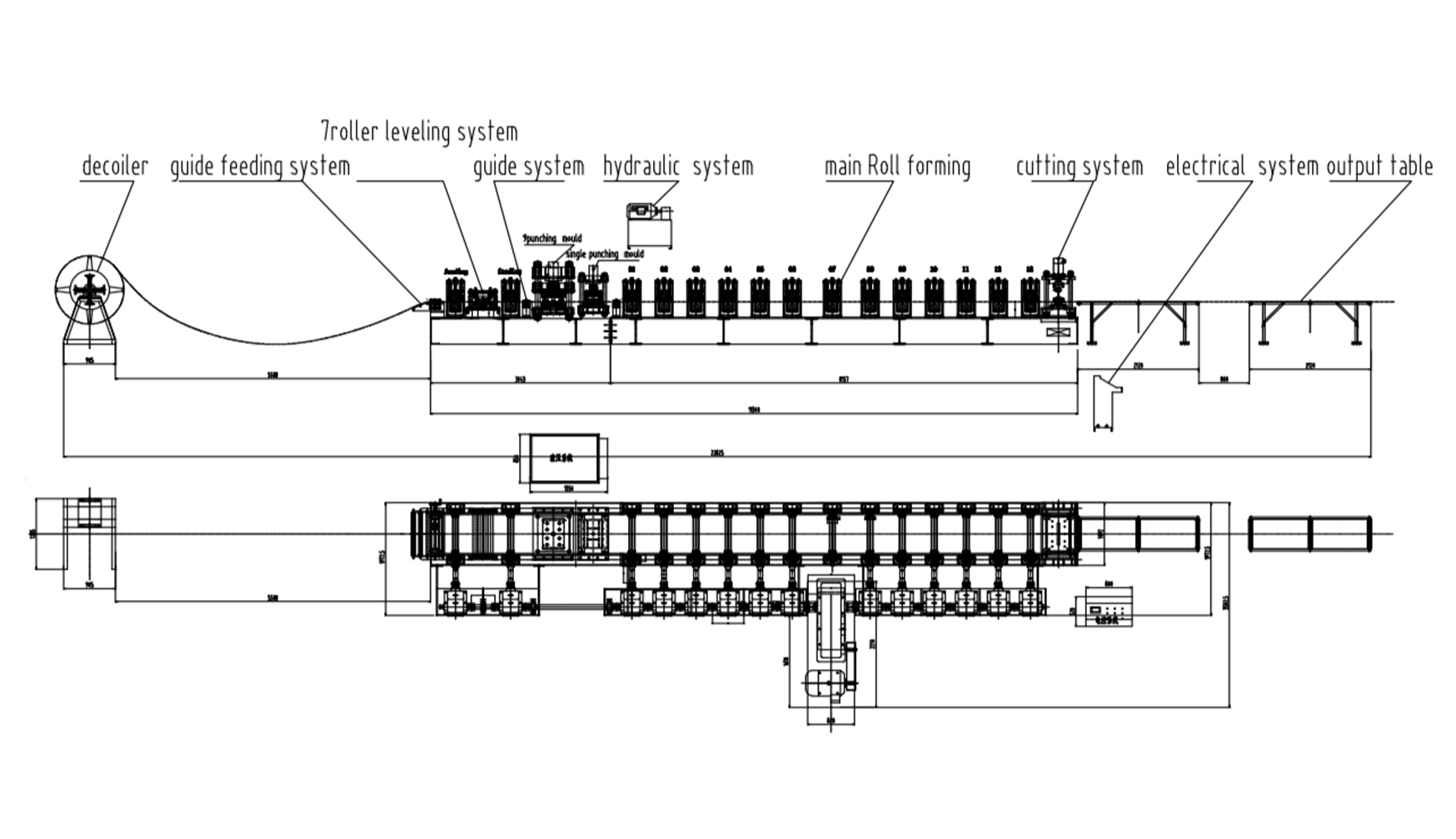

Production Line：
Production Parameters：
| 2 Waves Highway Guardrail Roll Forming Machine | ||
Machinable Material | A) Galvanized Steel | Thickness(MM): 2.5-3.0 mm Or According To Customer |
| B) PPGI | ||
| C) Carbon Steel | ||
| Yield Strength | 250 – 550 Mpa | |
| Tensil Stress | G250 Mpa-G550 Mpa | |
| Guard Rail Type | 2 Waves | |
| Decoiler | Hydraulilc Decoiler | |
| Punching System | Hydraulic Punching Station | * Punching Press (Optional) |
| Forming Station | About 12-16 Stations | * According To Your Profile Drawings |
| Driving System | Gearbox Drive | Chain drive (Optional) |
| Machine Structure | Forged Iron Station | |
| Forming Speed | 0-20 (M/MIN) | Not Including Cutting And Punching |
| Rollers’ Material | GCr 15 | * Cr12Mov (Optional) |
| Cutting System | Post-cutting | * Pre-cutting (Optional) |
| Frequency Changer Brand | Delta | * Siemens (Optional) |
| PLC Brand | Delta | * Siemens (Optional) |
| Power Supply | 380V 50Hz 3ph | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |
Production Details：
Hebei Tonggong RFM is located in Cangzhou City, Hebei Province, China. Founded in 2010, our company mainly produces roofing sheet roll forming machine, CZ purlin roll forming machine, light steel keel roll forming machine, metal embossing machine, etc.
Tags: roll forming machine , roofing machine , CZ purlin machine , keel roll forming machine , roller shutter door forming machine , color steel roll forming machine
