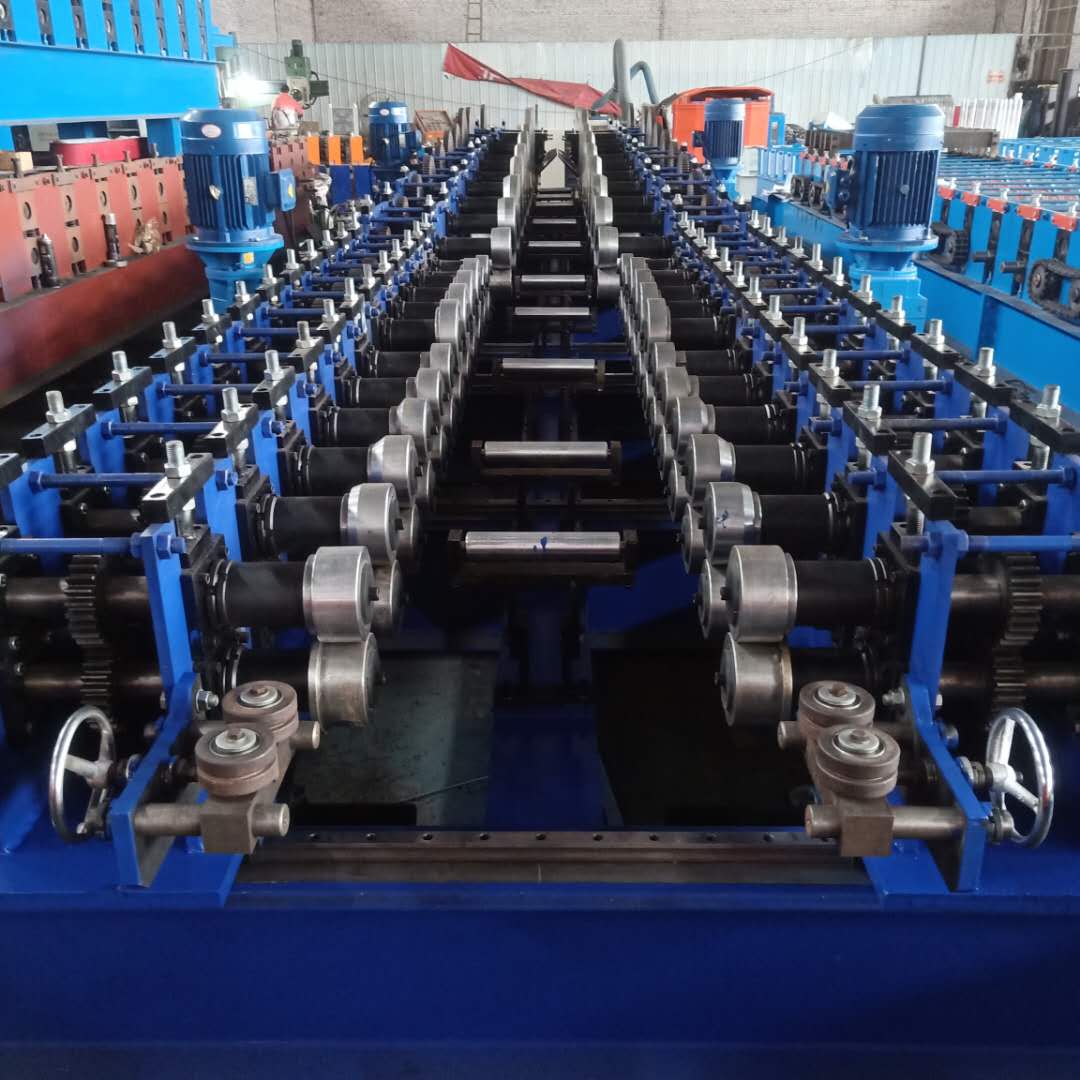

Cable Tray Roll Forming Machine

Cable Tray Roll Forming Machine


Cable tray roll forming machine is commonly used to make different kinds of cable trays, which is widely used in electrical fields, decorations, industrial constructions etc. According to the final cable products, it can be conveniently divided into three types: Non-hole trough cable tray, cable ladder, and perforated channel cable tray.

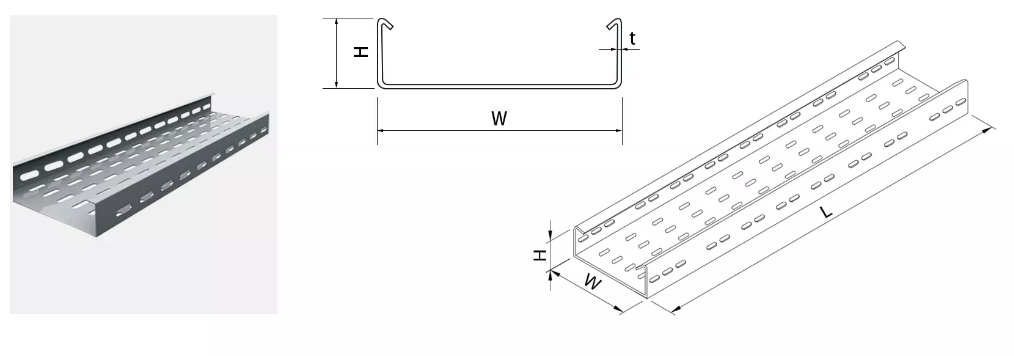

Production Profile:

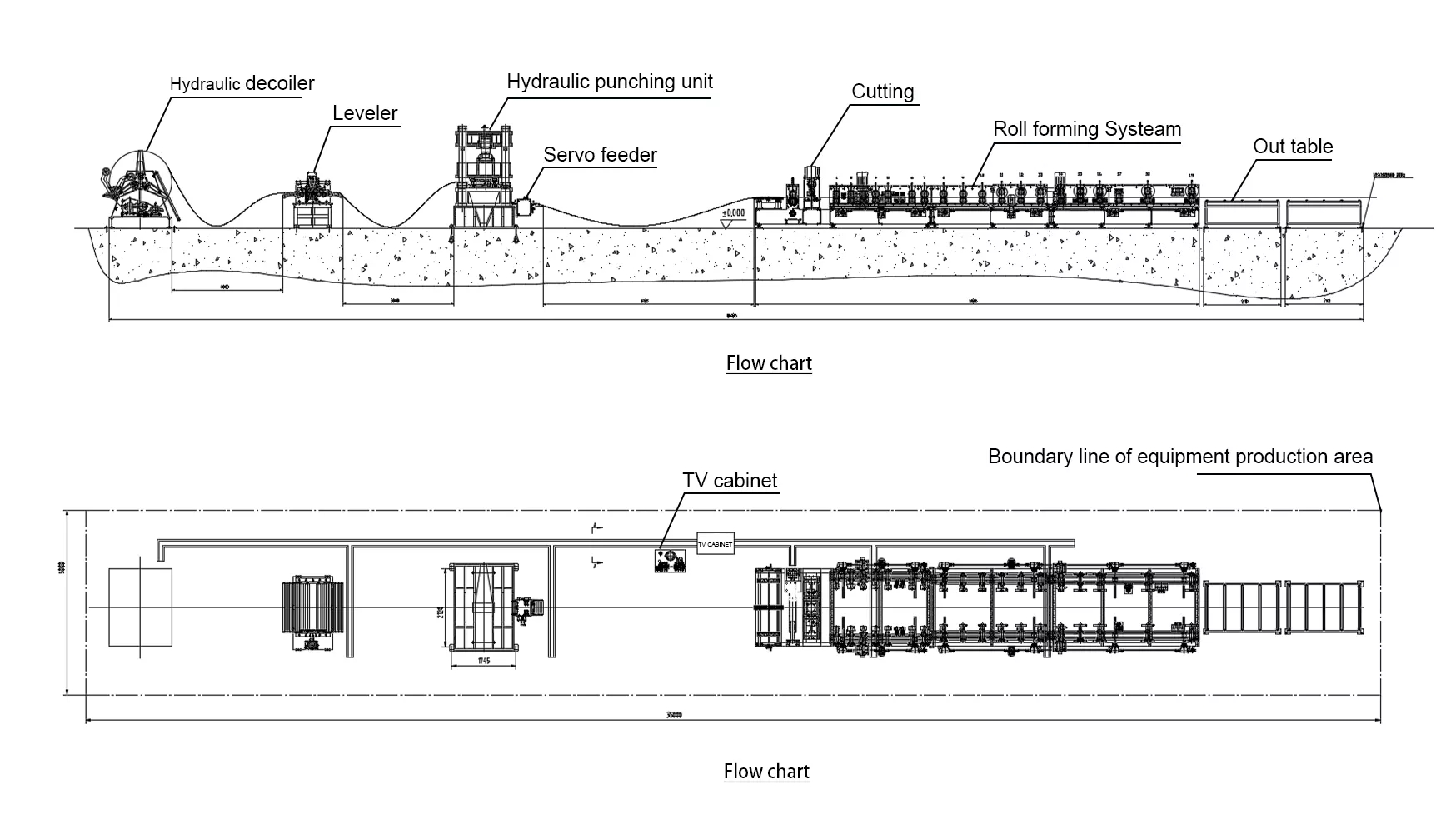

Production Line:


Production Parameters:

Cable Tray Roll Forming Machine

Machinable Material

A) Galvanized Steel

Thickness(MM): 0.6-1.2mm Or According To Customer

B) PPGI
Yield Strength250 – 550 Mpa
Tensil StressG250 Mpa-G550 Mpa
DecoilerManuel Decoiler
Punching SystemHydraulic Punching Station* Punching Press (Optional)
Forming StationAbout 20 Stations* According To Your Profile Drawings
Driving SystemChain DriveGearbox drive (Optional)
Machine StructureCantilever Type Adjust The Width And Height Freely
Forming Speed10-20(M/MIN)
Rollers’ MaterialGCr 15* Cr12Mov (Optional)
Cutting System

Post-cutting

* Pre-cutting (Optional)
Frequency Changer BrandDelta* Siemens (Optional)
PLC BrandDelta* Siemens (Optional)
Power Supply380V 50Hz 3ph* Or According To Your Requirement
Machine ColorIndustrial Blue* Or According To Your Requirement

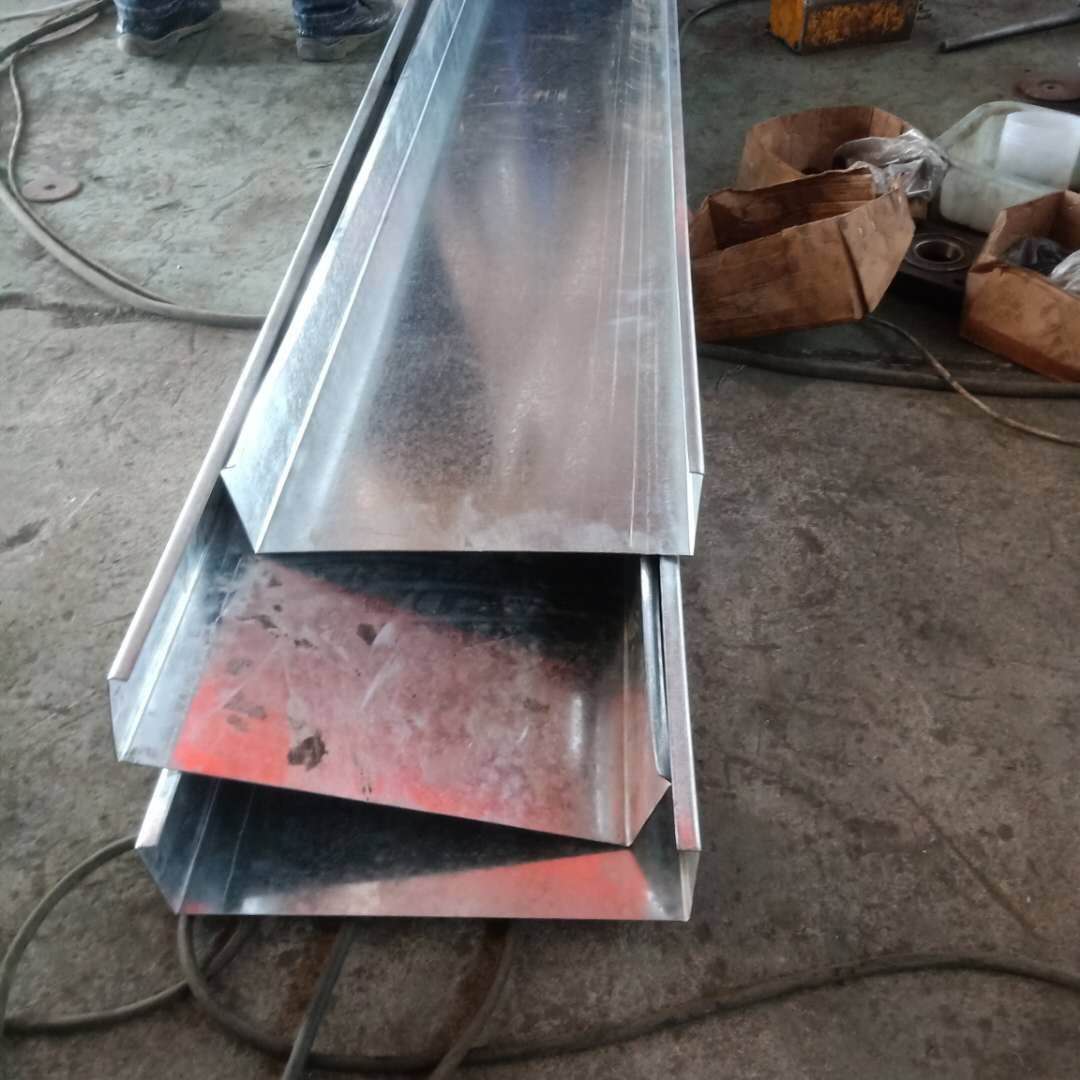

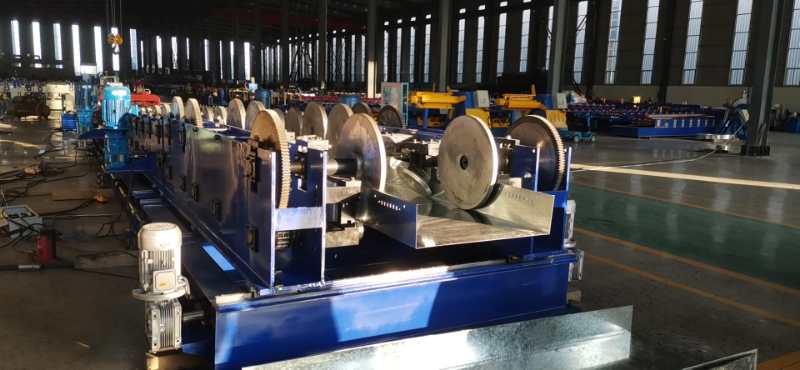

Production Details:

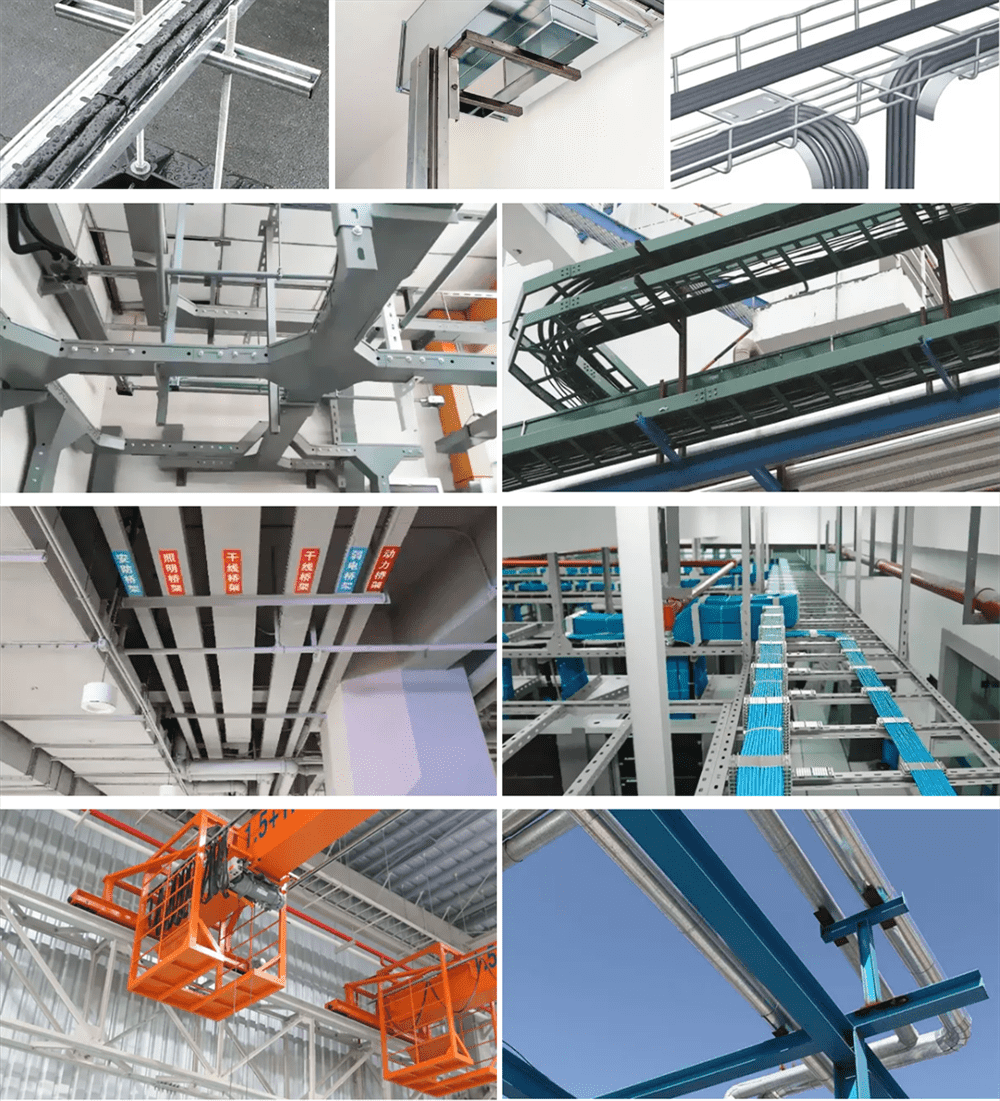

Application:
