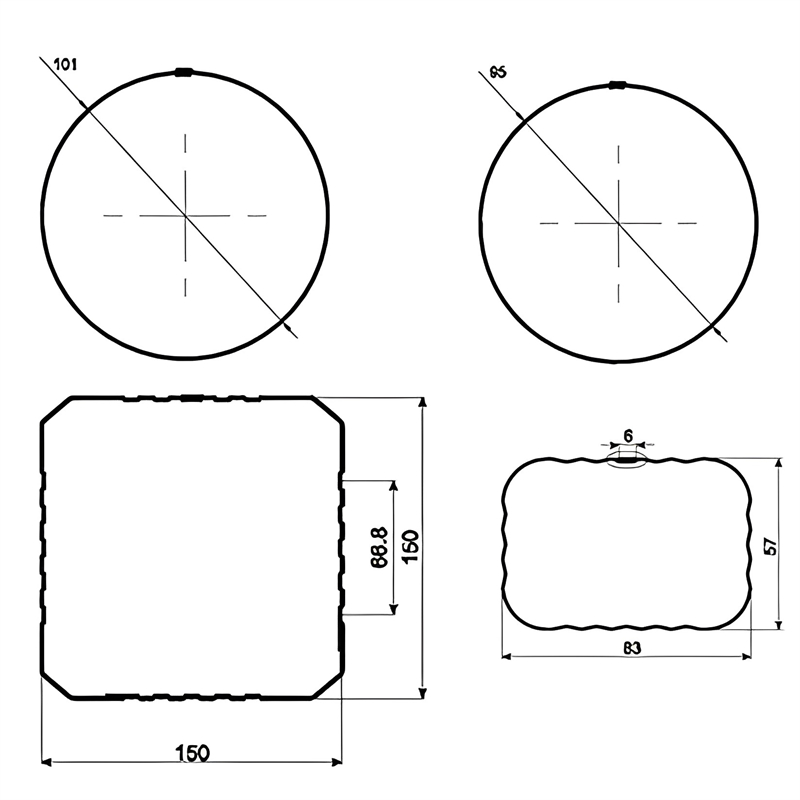

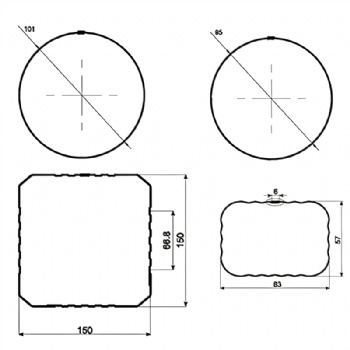

Production Profile：

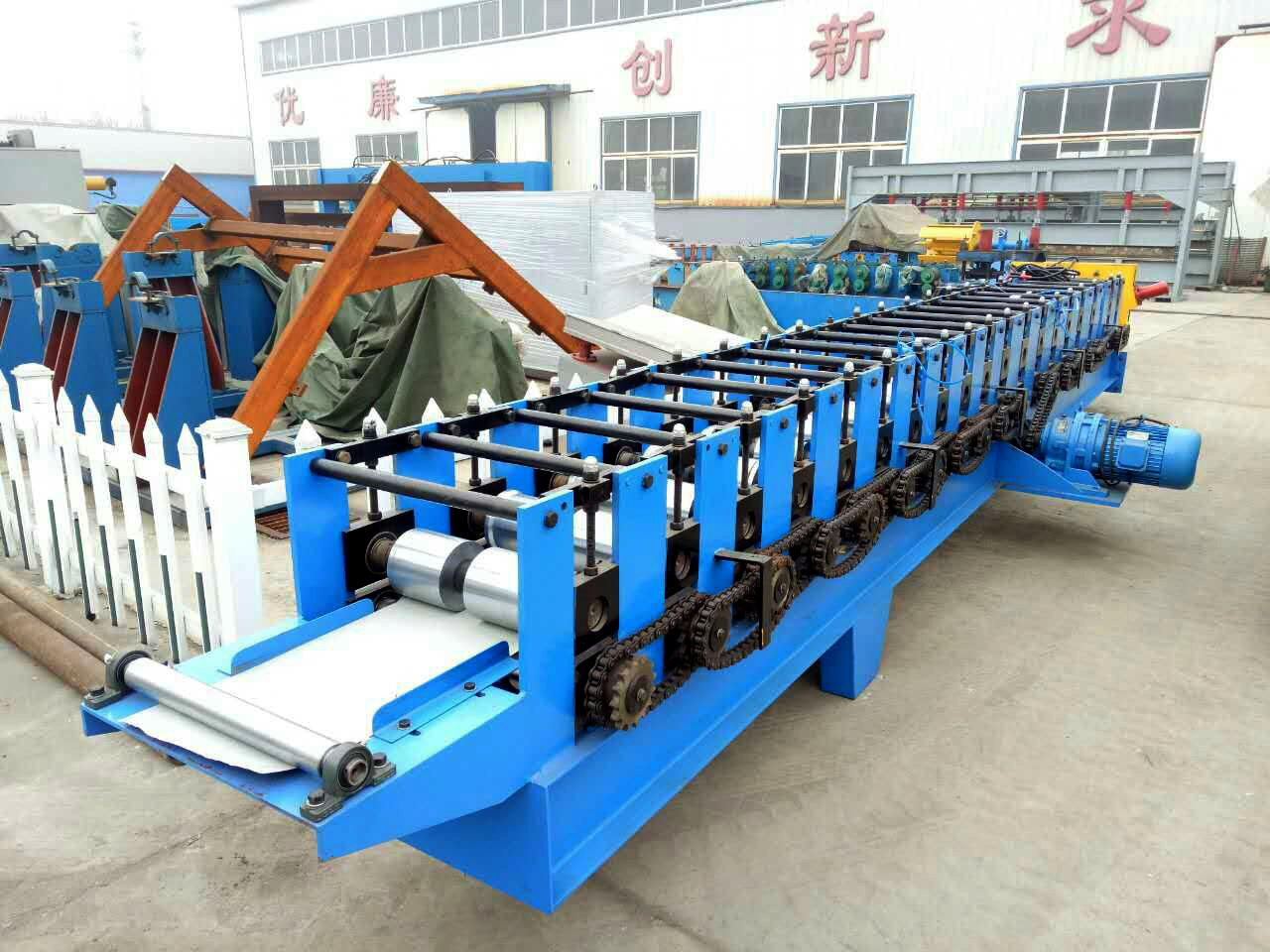

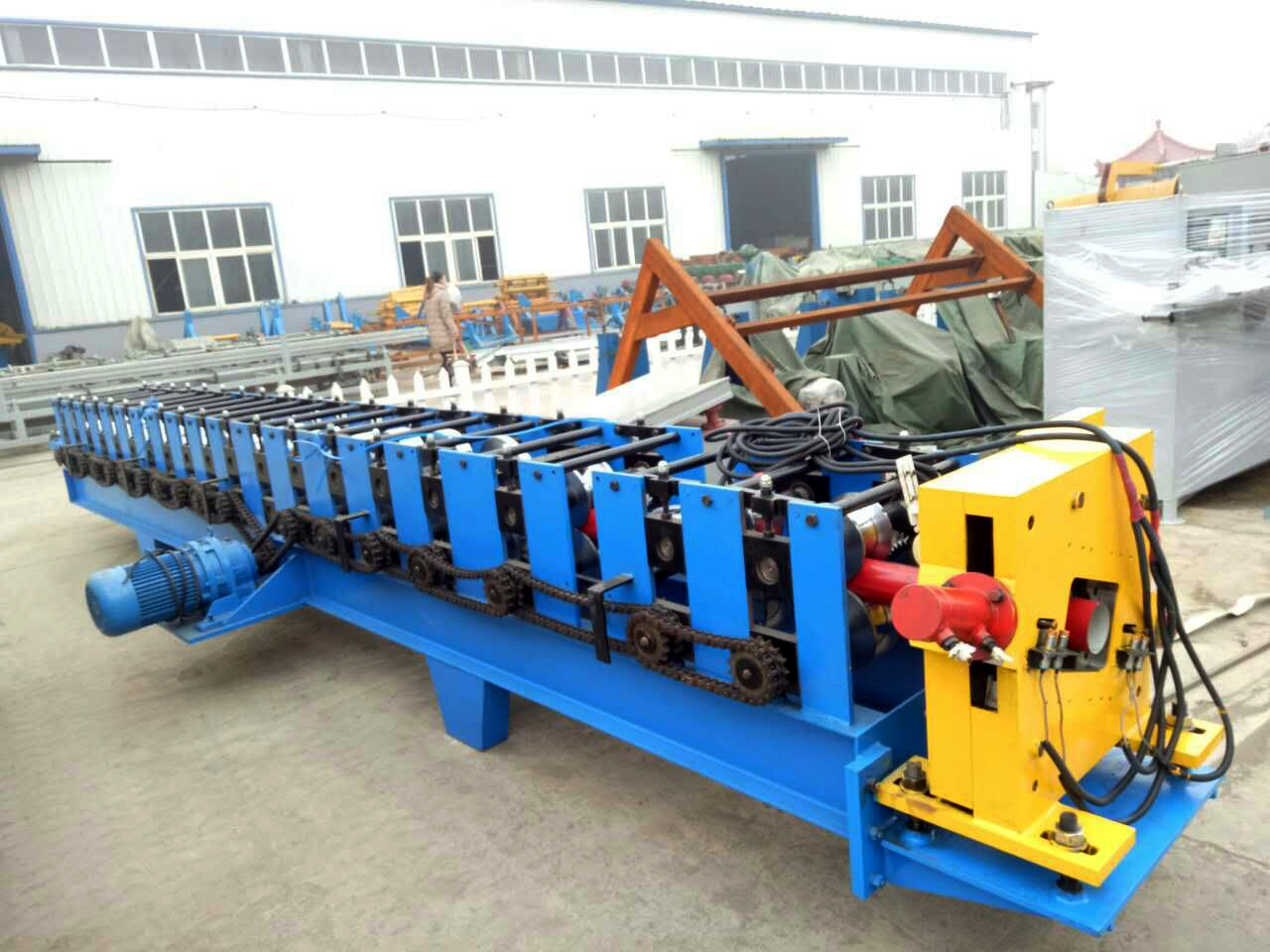

Production Line：
Production Parameters：

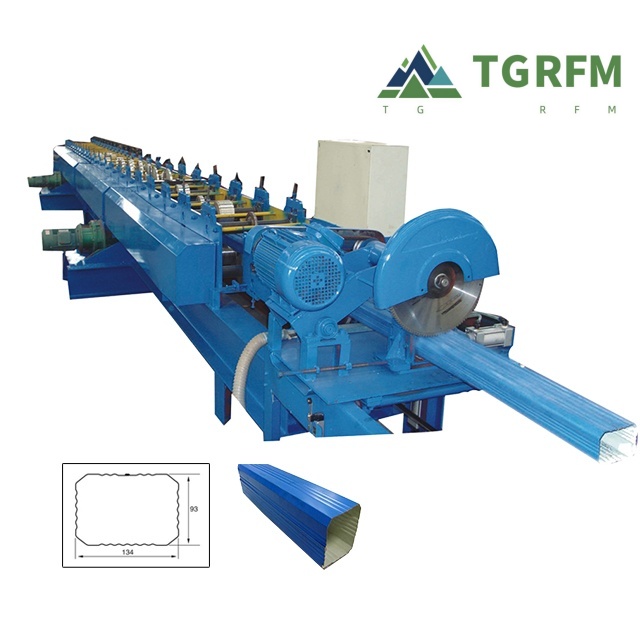

| Dounspout Roll Forming Machine | ||
Machinable Material | A) Galvanized Coil | Thickness(MM): 0.3-0.8 According To Your Requirement |
| B) PPGI, PPGL | ||
| Yield Strength | 250 – 350 Mpa / 350-550Mpa | |
| Tensil Stress | 350 Mpa-550 Mpa | |
| Coil Width | As Per The Detailed Profile | |
| Forming Speed | 10-15 m/min | * Or According To Your Requirement |
| Forming Station | 18-24 Stations | * According To Your Profile Drawings |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Driving System | Chain Drive | * Gearbox Drive (Optional) |
| Machine Structure | Steel Plates Welded | * Individual Station (Optional) |
| Rollers’ Material | 45# | |
| Cutting System | Hydraulic Post Cut | * Hydraulic Servo Tracking Cutter (Optional) |
| Output Way | Roller Table | |
| Frequency Changer Brand | Delta | * Siemens (Optional) |
| Power Supply | 380V 50Hz | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |
Production Details：
Application:
Hebei Tonggong RFM is located in Cangzhou City, Hebei Province, China. Founded in 2010, our company mainly produces roofing sheet roll forming machine, CZ purlin roll forming machine, light steel keel roll forming machine, metal embossing machine, etc.
Tags: roll forming machine , roofing machine , CZ purlin machine , keel roll forming machine , roller shutter door forming machine , color steel roll forming machine
